Helpful Tips on Installation of the Reversaroller Roller Fairlead

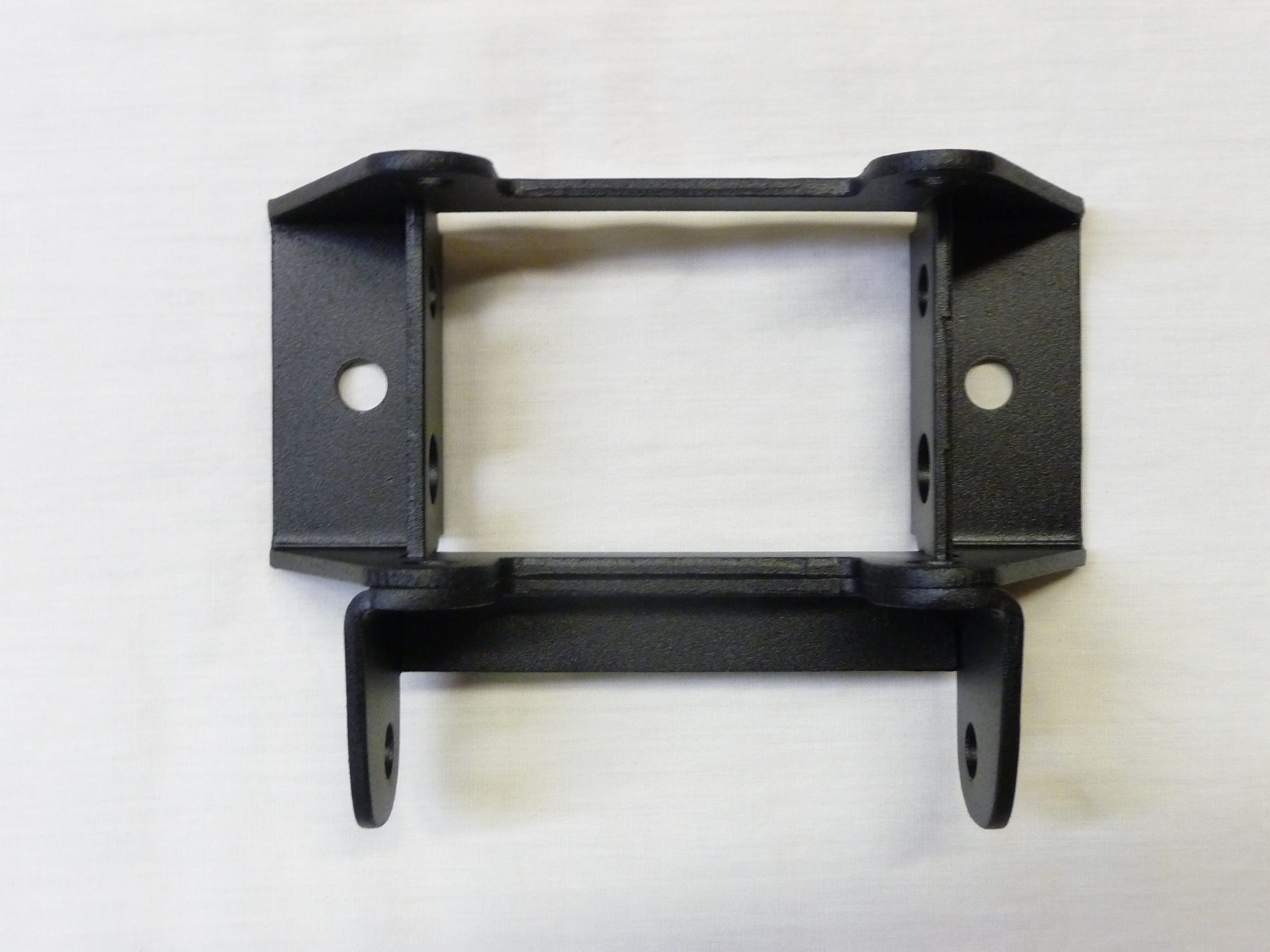

Reversaroller Roller Fairlead Bracket with extension for fifth roller
Reversaroller bracket and extension arm
(If you already have an existing standard roller fairlead, it will need to be removed and replaced with the Reversaroller roller fairlead. This generally attaches to the ATV with 2 bolts. The Reversaroller roller fairlead has mounting provisions for the 5th roller. The 5th roller and quick release tension lock pin are used for attaching the Reversaroller extension arm.)
Can Am Outlander
To install the Reversaroller, roller fairlead, try using an offset 15mm wrench and a T-50 extended Torx wrench. Hold the fanged nuts in place with the offset wrench.

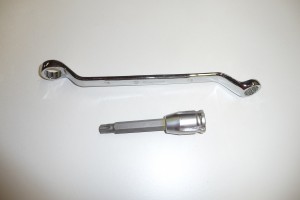

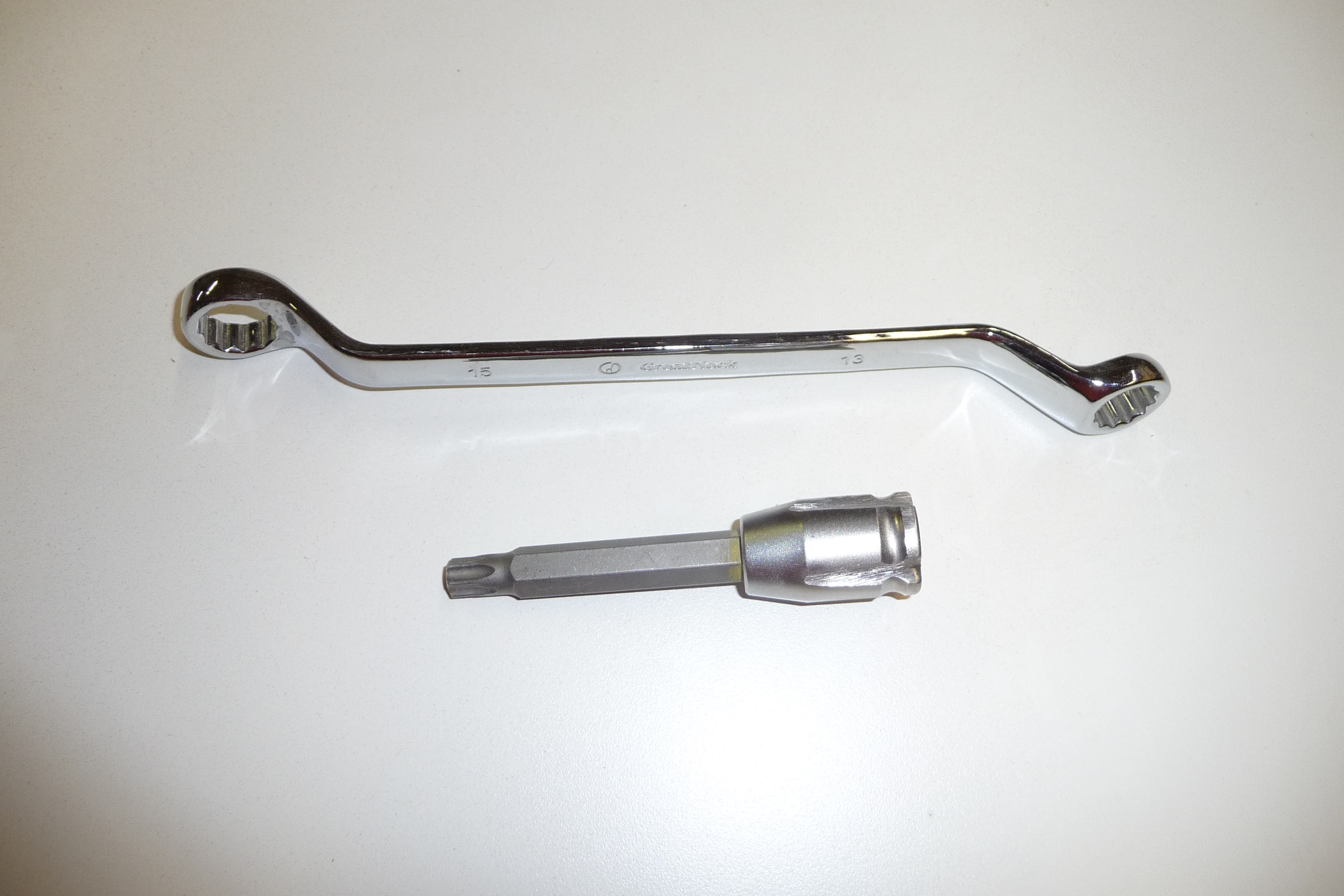

offset 15mm wrench, T-50 extended Torx wrench

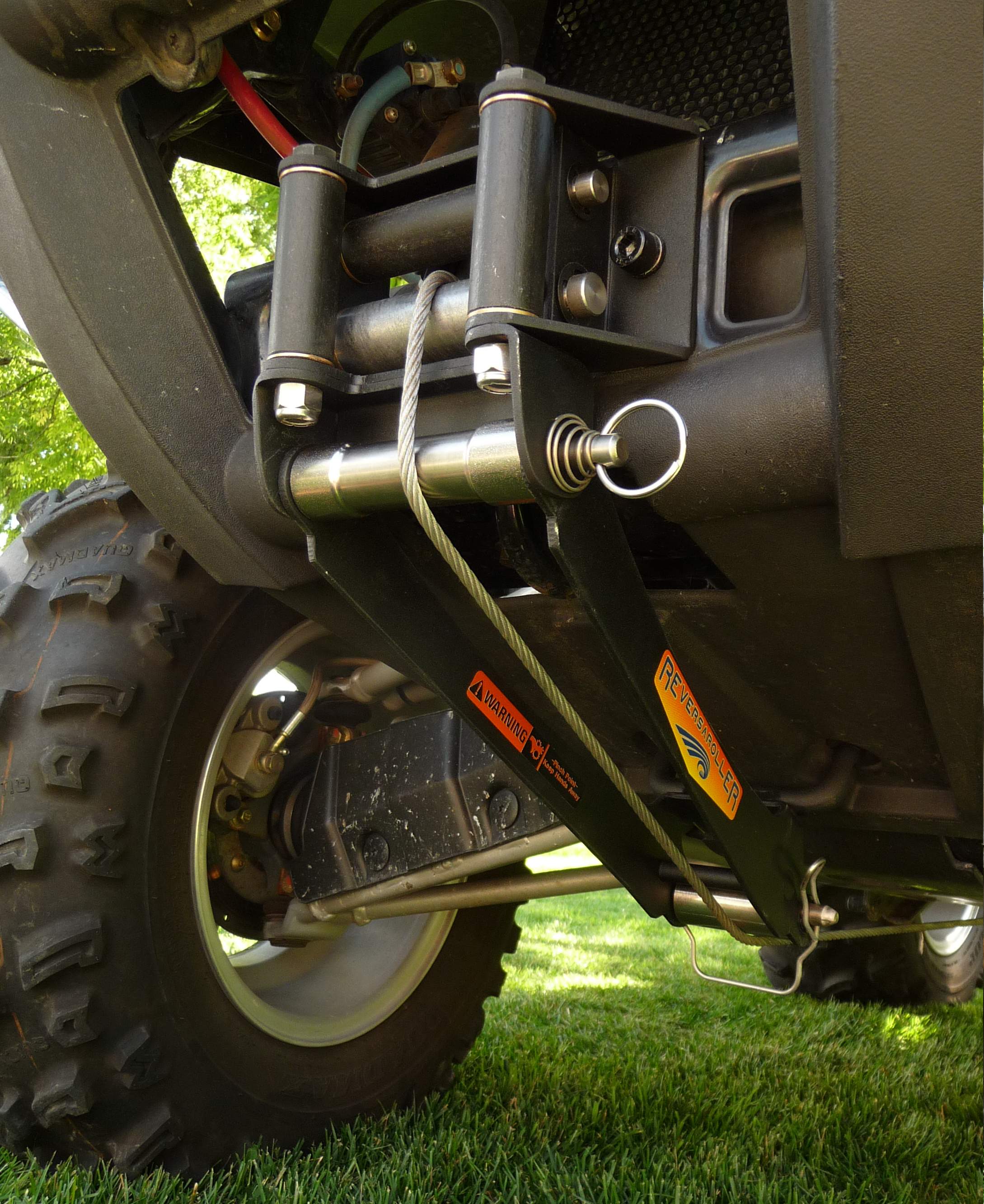

Arctic Cat
To install the Reversaroller roller fairlead, use a T-40 extended Torx on the front side. The nut on the back is welded on to the ATV frame. Be sure to use the lock washers on the front side.

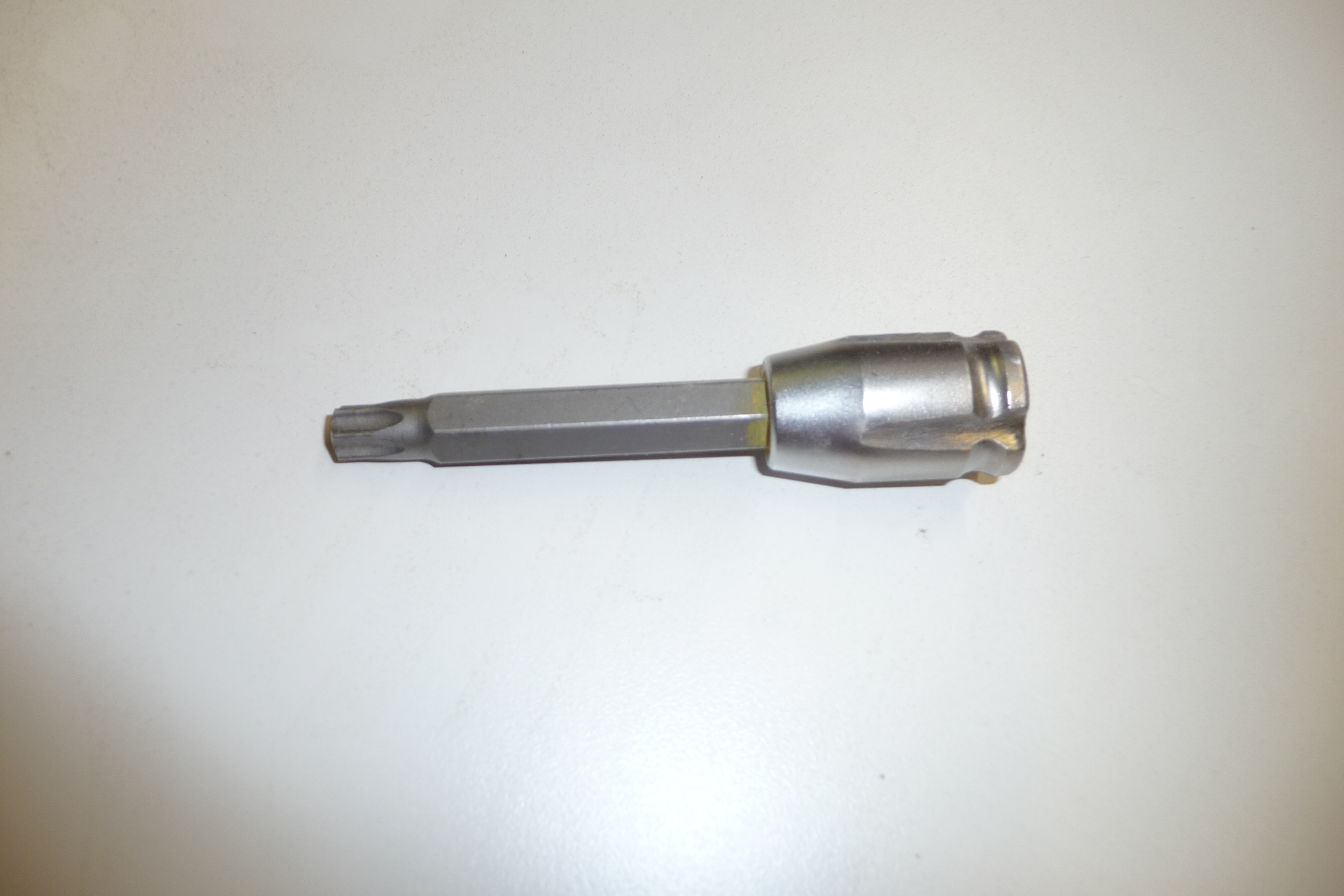

T-40 extended Torx wrench
Honda Rincon
The Reversaroller roller fairlead uses 3/8” bolts. You may need to drill out for the 3/8” bolts. The 5/16” hardware that the original roller fairlead may be fitted with is probably not strong enough.
